What Materials Are Used in High-Performance Flange Insulating Gasket Sets?

For engineers and procurement specialists in the oil & gas, chemical, and marine industries, specifying the correct Flange Insulating Gasket Sets is not just a matter of sealing—it is a critical decision for preventing costly corrosion, ensuring operational safety, and maintaining long-term asset integrity. At the core of this decision lies the material science behind these components. In this detailed guide, we will dissect the sophisticated materials that constitute a truly high-performance Flange Insulating Gasket Set. Drawing from decades of engineering and manufacturing experience, we at Ningbo Kaxite Sealing Materials Co., Ltd. will explain not only what these materials are but also why their specific properties are non-negotiable for success in demanding applications. Our factory is dedicated to precision in every set we produce.

---

Table of Contents

• What Core Materials Constitute the Insulating Layers?
• Why Are the Material Properties of Each Component So Critical?
• How Does Advanced Manufacturing Ensure Material Integrity?
• Summary and Key Takeaways
• Frequently Asked Questions (FAQ)

---

What Core Materials Constitute the Insulating Layers?

A Flange Insulating Gasket Set is a sophisticated composite assembly, not a single piece. Its primary function is to create a barrier that blocks the flow of electrical current between flanged connections, thereby stopping galvanic corrosion, while simultaneously maintaining a perfect pressure seal. The material selection for each layer is paramount. In our production at Ningbo Kaxite Sealing Materials Co., Ltd., we view each set as a system where every material must perform its role flawlessly.

The central insulating gasket itself is typically constructed from robust, non-conductive polymers. The most common and reliable materials include:

• Virgin Polytetrafluoroethylene (PTFE): Chosen for its exceptional chemical inertness. It resists virtually all industrial chemicals and solvents, making it ideal for harsh process environments. Our PTFE-based gaskets offer a wide temperature range and excellent creep resistance.
• Modified PTFE Compounds: While pure PTFE is excellent, our factory often engineers filled compounds. Adding carefully selected fillers like glass, graphite, or carbon improves compression resistance, reduces cold flow, and enhances mechanical strength for higher bolt loads.
• Thermoset Laminates (Phenolic/Epoxy): For applications requiring extreme mechanical strength and dimensional stability under high pressure and temperature, we utilize fabric-reinforced thermoset laminates. These materials, such as phenolic cotton or epoxy glass, provide outstanding load-bearing capacity.

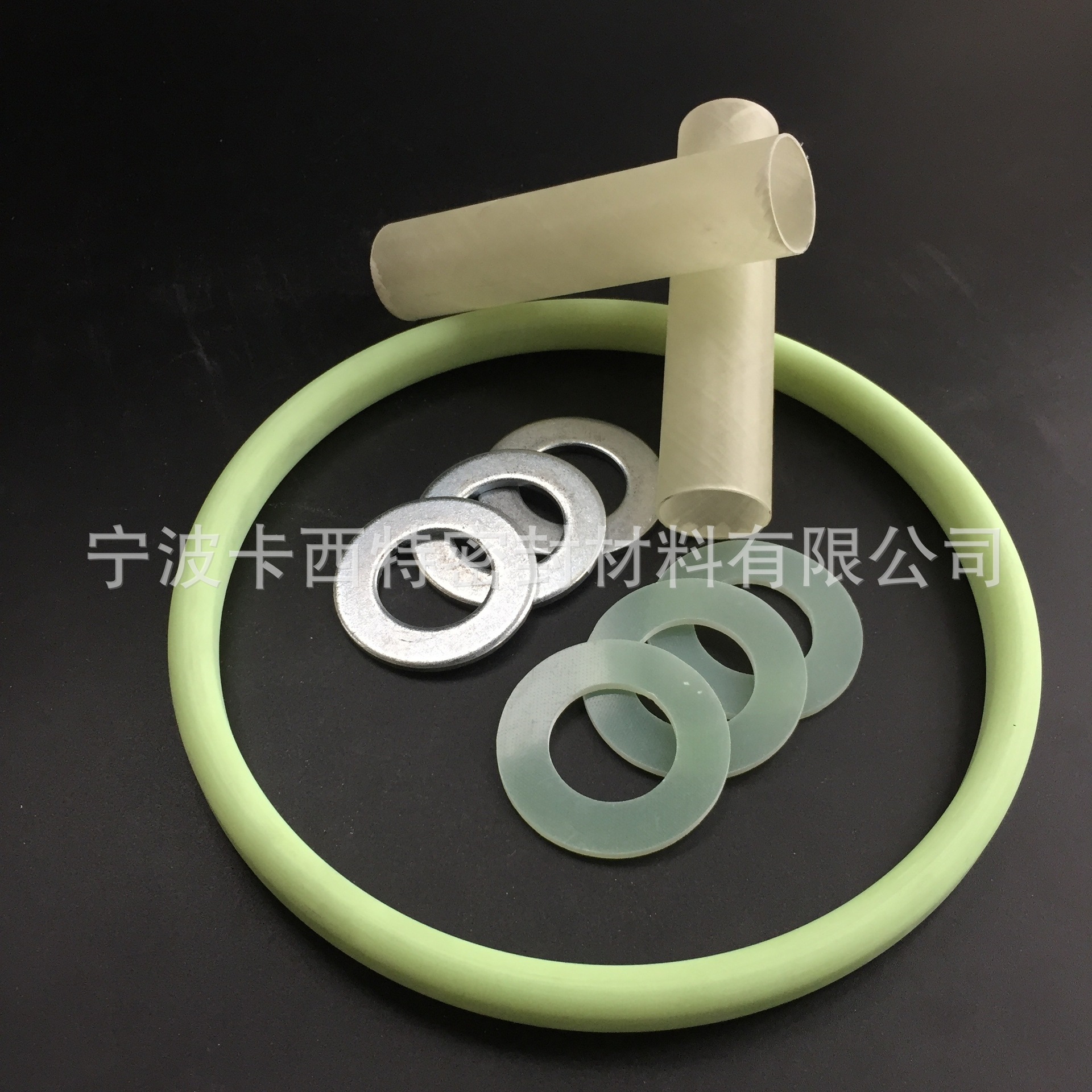

However, the gasket is only one part of the Flange Insulating Gasket Set. The complete kit includes insulating sleeves and washers. The material for these components must be equally, if not more, durable than the gasket, as they bear the direct clamping force of the bolts.

• Insulating Sleeves: Our sleeves are precision-machined from high-grade, glass-reinforced polymers like PEEK (Polyether Ether Ketone) or high-density, fiber-reinforced nylon. These materials offer superb dielectric strength, high compressive strength, and resistance to deformation, ensuring the bolt remains electrically isolated from the flange.
• Insulating Washers: To complement the sleeves, the washers are made from similar high-strength insulating materials. We often use thick, rigid sheets of phenolic, epoxy, or PTFE composites. Consistency in material quality here is critical to prevent flattening or cracking during torquing, which would create a short-circuit path.

Finally, the sealing element in some sets may be a combination. For instance, our factory produces sets with a central PTFE insulating gasket combined with inner and outer guiding rings made from stainless steel or other metals. This metal component does not bridge the insulation gap but serves to align the gasket, contain extrusion, and provide structural support. The choice of metal here—often 304 or 316 stainless steel—is made for its corrosion resistance, complementing the insulating function of the polymer parts.

Selecting the right combination from this material palette is where our expertise comes in. A Flange Insulating Gasket Set for a chilled water line will differ vastly in material choice from one destined for a high-temperature hydrocarbon pipeline. We engineer our sets based on the specific service conditions, ensuring each material is optimized for the application.

---

Why Are the Material Properties of Each Component So Critical?

Understanding the what of material selection is only the first step. The why—the fundamental link between material properties and field performance—is what separates a standard gasket set from a high-performance, reliable solution. Each property directly impacts the safety, longevity, and effectiveness of the insulation barrier. At Ningbo Kaxite Sealing Materials Co., Ltd., our quality protocols are built around verifying these properties in our materials and our finished Flange Insulating Gasket Sets.

Let’s break down the key properties and their operational significance:

• Dielectric Strength (kV/mm): This is the core function. The material must withstand high voltages without breaking down. A low dielectric strength could lead to a catastrophic failure of the insulation, allowing corrosion currents to flow. Our materials are specified with dielectric strengths far exceeding the expected potentials in cathodic protection systems.
• Compressive Strength and Creep Resistance: Flange connections are under immense bolt load. The insulating materials, especially the washers and sleeves, must not deform permanently (creep) or crush under this pressure. Loss of thickness in these components leads to loosening of the joint, seal failure, and potential crushing of the central gasket. Our use of reinforced polymers and thermosets is specifically targeted at achieving high compressive yield strength.
• Chemical Compatibility: The materials will be exposed to process fluids, atmospheric conditions, and possible leaks. Swelling, degradation, or embrittlement of the polymer due to chemical attack will compromise both seal and insulation. Our factory maintains comprehensive chemical resistance charts for our materials to guide selection for specific media.
• Temperature Resistance: Operating temperature ranges are non-negotiable. A material that softens at high temperature will creep; one that becomes brittle at low temperatures may crack. Our products are rated for continuous service within defined temperature limits, ensuring stable performance from arctic to desert conditions.
• Water Absorption: For offshore or piping applications, low water absorption is vital. Absorbed water can lower the dielectric strength and promote degradation. Our preferred materials, like PTFE and properly cured thermosets, exhibit near-zero water absorption.

To illustrate how these properties translate into specifications for our Flange Insulating Gasket Sets, consider the following typical data table for a standard product line from our catalog. This data is derived from rigorous testing in our facility.

Component	Primary Material	Key Property 1	Key Property 2	Typical Service Range
Central Gasket	Glass-Filled PTFE	Dielectric Strength: >10 kV/mm	Compressive Strength: >25 MPa	-50°C to +200°C
Insulating Sleeves	Glass-Reinforced PEEK	Dielectric Strength: >15 kV/mm	Compressive Strength: >90 MPa	-60°C to +250°C
Insulating Washers	Epoxy Glass Laminate	Dielectric Strength: >20 kV/mm	Water Absorption: <0.1%	-40°C to +155°C
Alignment Ring (if applicable)	316 Stainless Steel	Yield Strength: >205 MPa	Corrosion Resistance: Pitting Resistant	Dependent on gasket material

This table is a snapshot of our engineering philosophy: every component is matched to a material whose properties are quantified and guaranteed. It is this meticulous attention to the *why* behind material selection that ensures our Flange Insulating Gasket Sets perform consistently under pressure, both literally and figuratively. We design our products to be the most reliable component in your piping system.

---

How Does Advanced Manufacturing Ensure Material Integrity?

Superior raw materials are only the starting point. The true value of a Flange Insulating Gasket Set is realized through precision manufacturing processes that preserve and enhance the inherent properties of those materials. Poor machining, inconsistent curing, or inadequate quality control can render the best polymer ineffective. At Ningbo Kaxite Sealing Materials Co., Ltd., our manufacturing philosophy is built on controlled processes that transform certified materials into flawless, ready-to-install units.

The journey begins with stringent raw material inspection. Our factory only sources polymers and reinforcing agents from reputable suppliers, with mill test certificates and batch traceability. Upon receipt, we conduct spot checks for key properties like density, melt flow, and filler content. This ensures the foundation of our product is sound.

For the central gasket, the manufacturing method is crucial. We primarily use:

• Precision Skiving (for PTFE): For PTFE and its compounds, we employ computer-controlled skiving machines that peel a continuous, dimensionally perfect tape from a molded billet. This process ensures uniform density, absence of voids, and consistent thickness—critical for even compression and reliable sealing.
• Punching and CNC Machining: For smaller diameters or complex profiles, high-precision punching or CNC machining is used. Our CNC centers are programmed to produce clean, burr-free edges that prevent tearing during installation and ensure a perfect fit around bolt holes and pipe IDs.
• Molding and Curing (for Thermosets): For phenolic or epoxy laminate gaskets and washers, the process involves layering impregnated fabrics under specific heat and pressure cycles in hydraulic presses. Our technicians meticulously control the cure cycle—time, temperature, and pressure—to achieve full polymerization, resulting in a component with maximum mechanical and dielectric strength.

The production of insulating sleeves and washers demands even higher precision due to their tight tolerances. Our process includes:

• Extrusion and Precision Cutting: For polymer sleeves, we extrude tubing to a tightly controlled outer diameter, then cut to length with automated saws that guarantee square, clean ends.
• Turning and Boring: Sleeves and washers are often finished on CNC lathes. This ensures the inner diameter of the sleeve is perfectly sized to the bolt, and the faces of the washers are parallel and smooth. Surface finish matters here; a rough surface can create stress points and reduce dielectric strength.

Finally, assembly and inspection are where we guarantee the integrity of the complete Flange Insulating Gasket Set. Each kit is assembled with care, and undergoes a 100% visual inspection. Furthermore, we perform regular destructive and non-destructive testing on sample batches from our production lines, including:

• Dielectric withstand (Hi-Pot) tests to verify insulation integrity.
• Dimensional checks using calibrated gauges and CMMs for critical profiles.
• Compression testing to validate load-bearing capacity.

This end-to-end control, from raw pellet to packaged set, is what allows us to stand behind every Flange Insulating Gasket Set that leaves our factory. Our name, Ningbo Kaxite Sealing Materials Co., Ltd., on the packaging is a promise of this process integrity. We build our products to ensure your peace of mind, knowing that the material science on paper has been faithfully translated into a robust, field-ready product.

---

Summary and Key Takeaways

Selecting a high-performance Flange Insulating Gasket Set is a technical decision rooted in material science and precision engineering. As we have detailed, the sets are complex assemblies where each component—the central gasket, the insulating sleeves, and the washers—must be manufactured from materials with specific, high-performance properties like superior dielectric strength, excellent compressive resistance, and proven chemical compatibility. The synergy of these materials, engineered and machined to exacting tolerances, creates the reliable barrier essential for preventing costly galvanic corrosion and ensuring joint integrity in critical piping systems.

At Ningbo Kaxite Sealing Materials Co., Ltd., our decades of experience have taught us that performance is not accidental. It is the result of deliberate material selection, rigorous manufacturing controls, and an unwavering commitment to quality in our factory. We don’t just sell components; we provide engineered solutions backed by data and testing. When you specify one of our Flange Insulating Gasket Sets, you are selecting a product where every material has been chosen and processed for one purpose: to deliver long-lasting, maintenance-free performance in your most demanding applications.

Ready to Specify the Right Materials for Your Application?

Don't leave corrosion protection to chance. Contact Ningbo Kaxite Sealing Materials Co., Ltd. today for expert technical support, detailed material datasheets, and a quote for Flange Insulating Gasket Sets engineered to your precise operating conditions. Let our expertise become your advantage.

---
