Polymer science has moved at a remarkable pace over the past decade, and nowhere is that progress more visible than in industrial sealing technology. The materials used inside a gasket determine how a piping system handles pressure spikes, chemical exposure, and thermal cycling day after day. Engineers who once had to choose between mechanical strength and chemical resistance now have access to advanced polymer formulations that deliver both simultaneously. This shift is fundamentally changing how plant designers specify sealing solutions and how suppliers like Ningbo Kaxite Sealing Materials Co., Ltd. engineer their product lines to meet those evolving demands.

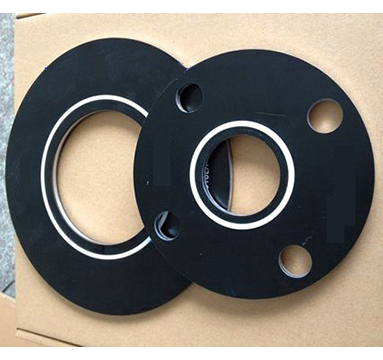

Our Flange Insulating Gasket Sets sit at the intersection of polymer innovation and precision manufacturing. Designed to prevent galvanic corrosion and stray current interference in flanged pipeline systems, these products must perform reliably across a wide range of temperatures, pressures, and media. The introduction of next-generation polymers, including reinforced PTFE compounds, expanded graphite composites, and fiber-reinforced phenolic laminates, has given our engineering team the raw material capability to push performance boundaries that older elastomer-based designs simply could not reach. This article explores exactly how those material advances translate into real-world benefits for pipeline operators and procurement engineers alike.
The foundation of any high-performing Flange Insulating Gasket Set is the choice of base polymer. Over the past several years, our factory has systematically evaluated and qualified a range of advanced materials, each engineered to address specific performance gaps left by conventional rubber or asbestos-based predecessors. Below is an overview of the primary polymers now used across our product range.
| Material | Max Temp (C) | Dielectric Strength (kV/mm) | Chemical Resistance | Compressive Strength (MPa) |
| G-10 Glass Epoxy | 130 | 18 - 22 | Good (acids, alkalis) | 420 |
| Reinforced PTFE | 260 | 14 - 18 | Excellent (most media) | 120 - 180 |
| Phenolic Laminate | 150 | 12 - 16 | Moderate | 350 - 480 |
| PEEK | 260 | 19 - 24 | Excellent | 200 |
| Expanded Graphite / Polymer | 450 (inert gas) | 8 - 12 | Very Good | 80 - 150 |
At Kaxite Sealing, our material selection process begins with a detailed review of the operating medium, flange rating, bolt pattern, and cathodic protection requirements. This ensures that each Flange Insulating Gasket Set is matched precisely to the service environment rather than selected from a generic catalog.
Electrical isolation is the primary functional requirement of any insulating gasket set. Without consistent, measurable dielectric performance, the entire purpose of the assembly, preventing galvanic corrosion and stray current leakage, is compromised. New polymer formulations have raised the bar significantly, delivering insulation values that were unachievable with traditional materials only a decade ago.
| Material | Insulation Resistance (dry, MOhm) | Insulation Resistance (wet, MOhm) | Dielectric Withstand Voltage (AC, kV) |
| G-10 Glass Epoxy | Greater than 5,000 | Greater than 500 | 5 |
| Reinforced PTFE | Greater than 3,000 | Greater than 300 | 3.5 |
| PEEK Sleeve/Washer | Greater than 8,000 | Greater than 1,000 | 6 |
| Phenolic Laminate | Greater than 1,000 | Greater than 80 | 2.5 |
Our in-house electrical testing laboratory validates every batch of Flange Insulating Gasket Sets against these benchmarks before products leave the production floor. Ningbo Kaxite Sealing Materials Co., Ltd. issues full test certificates traceable to international standards, giving procurement and inspection teams the documentation they need without additional third-party testing delays.
A gasket that insulates perfectly on day one but swells, hardens, or loses sealing force within months of installation is not an engineering solution, it is a liability. Polymer selection is the decisive factor in long-term sealing integrity, and the wrong choice can lead to catastrophic leaks, unplanned shutdowns, and significant environmental and financial consequences.
| Service Temperature Range | Recommended Polymer | Key Advantage |
| Minus 200 C to 0 C (Cryogenic) | Virgin PTFE, PEEK | No brittleness, stable modulus |
| 0 C to 120 C (Ambient / Moderate) | G-10 Epoxy, Phenolic, EPDM-faced | High compressive strength, low cost |
| 120 C to 200 C (Elevated) | Reinforced PTFE, Expanded Graphite | Low creep, good conformability |
| 200 C to 260 C (High Temp) | PEEK, Expanded Graphite/Polymer | Dimensional stability, no outgassing |
| Above 260 C (Extreme) | Expanded Graphite (inert atmosphere) | Thermal resilience, conformability |
Our engineering team at Ningbo Kaxite Sealing Materials Co., Ltd. reviews each application's operating envelope before recommending a specific material grade. This consultative approach prevents the common mistake of over-specifying an expensive polymer where a simpler compound would suffice, or under-specifying a material that fails prematurely in demanding service.
Our Flange Insulating Gasket Sets are engineered to meet and exceed the requirements of the world's most widely adopted pipeline and process industry standards. Below is a comprehensive technical overview of the product range available from our factory.
| Parameter | Specification |
| Nominal Pipe Size (NPS) | 1/2 inch to 60 inches (custom sizes available) |
| Pressure Class | ANSI 150, 300, 600, 900, 1500, 2500 |
| Gasket Face Types | Full Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Tongue and Groove |
| Gasket Materials (core) | G-10 Glass Epoxy, Reinforced PTFE, Phenolic Laminate, PEEK, Expanded Graphite |
| Seating Face Options | Plain, PTFE-faced, EPDM-faced, Silicone-faced, Graphite-faced |
| Sleeve Material | G-10 Epoxy, Mylar, PEEK, PTFE |
| Washer Material (inner / outer) | G-10 Epoxy, Steel-backed PTFE, PEEK, Phenolic |
| Insulation Resistance (dry) | Greater than 1,000 MOhm (standard); greater than 5,000 MOhm (high-spec grades) |
| Dielectric Withstand Voltage | 2.5 kV to 6 kV AC (1 minute, depending on material grade) |
| Operating Temperature Range | Minus 200 degrees C to plus 450 degrees C (media and material dependent) |
| Maximum Operating Pressure | Up to 420 bar (ANSI 2500 class assemblies) |
| Surface Finish (seating face) | Ra 3.2 to 6.3 micrometers (standard); Ra 1.6 micrometers (precision grade) |
| Thickness Tolerance | Plus or minus 0.05 mm (precision CNC machined) |
| Color Coding | Red (standard), Yellow (PTFE), Blue (PEEK), custom available |
| Bolt Set Inclusion Options | Stainless Steel A193 B7 / A194 2H, Duplex 2205, Inconel 625 |
| Certification | ISO 9001:2015, CE, NACE MR0175, RoHS compliant |
Each Flange Insulating Gasket Set leaves our facility individually packaged and labeled with full traceability data including batch number, material grade, pressure class, and test certificate reference. Ningbo Kaxite Sealing Materials Co., Ltd. maintains a full quality management system certified to ISO 9001:2015, and our inspection records are available to customers on request.
Service life extension is one of the most commercially significant outcomes of advanced polymer development. Replacing a flange insulating assembly on a live pipeline or offshore riser is a costly, time-consuming operation that requires hot work permits, scaffolding, and often a full shutdown of the associated system. Every additional year of reliable service life directly reduces lifetime maintenance costs and operational risk.
| Gasket Generation | Core Material | Typical Service Life | Primary Failure Mode |
| First generation (pre-2000) | Asbestos / Rubber | 3 to 5 years | Creep, chemical attack |
| Second generation (2000-2015) | Standard Phenolic / PTFE | 7 to 12 years | Moisture ingress, UV degradation |
| Current generation (2016-present) | Reinforced PTFE / G-10 / PEEK | 15 to 25 years | Mechanical overload (improper installation) |
These improvements are not theoretical. Ningbo Kaxite Sealing Materials Co., Ltd. has field data from our installed products on natural gas transmission pipelines in Central Asia and crude oil export lines in the Middle East confirming service lives exceeding 18 years with no measurable degradation in insulation resistance. Our ongoing collaboration with operators gives us real-world feedback that continuously informs our material development roadmap.
The applications for advanced polymer Flange Insulating Gasket Sets extend across virtually every sector that relies on flanged piping systems for the transport or processing of fluids and gases. However, certain industries have particularly strong technical and economic drivers for adopting the latest polymer grades.
| Industry | Recommended Gasket Grade | Key Requirement |
| Oil and Gas | G-10 / PTFE / PEEK full kit | Cathodic protection integrity, H2S resistance |
| Petrochemical | Reinforced PTFE, PEEK sleeves | Chemical inertness, high temp stability |
| Water and Wastewater | G-10 Standard Grade | Long service life, low total cost |
| Power Generation | Expanded Graphite / PEEK | Steam service, thermal cycling resistance |
| Marine and Offshore | G-10 Marine Grade with SS bolt set | Saltwater corrosion resistance, NACE compliance |
| Pharmaceutical / Food | Virgin PTFE FDA Grade | FDA compliance, cleanability, purity |
Ningbo Kaxite Sealing Materials Co., Ltd. maintains dedicated application engineers for each of these sectors. When a project has unusual requirements, such as a combination of cryogenic service and cathodic protection on a liquefied hydrogen pipeline, our team can draw on over two decades of field experience to engineer a custom Flange Insulating Gasket Set that meets all constraints without over-specifying materials unnecessarily.
The evolution of polymer materials has transformed what is possible in flange insulation technology. Products that once had to compromise between chemical resistance, mechanical strength, and electrical performance can now deliver all three simultaneously, thanks to advances in filled PTFE, glass-reinforced epoxy, PEEK composites, and expanded graphite formulations. For engineers specifying sealing systems in demanding environments, these material advances translate directly into longer service intervals, lower maintenance costs, and more reliable cathodic protection of critical pipeline assets.
At Ningbo Kaxite Sealing Materials Co., Ltd., our Flange Insulating Gasket Sets are the product of continuous investment in polymer science and precision manufacturing. Our factory tests every assembly to international electrical and mechanical standards, and our engineering team provides application-specific guidance from the earliest stages of a project. Whether the requirement is a standard ANSI 150 raised-face assembly for a water distribution upgrade or a NACE-compliant, high-pressure offshore riser kit for a deepwater development, our product range and technical expertise are ready to support your project from specification to installation.
Our technical team at Ningbo Kaxite Sealing Materials Co., Ltd. is available to review your flange schedule, recommend the optimal polymer grade, and provide a full quotation with certified test documentation. Send us your project datasheet or flange list and we will respond with a detailed technical and commercial proposal within 24 hours.
Contact our factory today and let our 20-plus years of sealing expertise work for your next project.
Request a Technical QuoteQ1: How do I know which polymer grade is right for my specific pipeline service conditions?
A: The correct polymer grade depends on four primary factors: the operating medium and its chemical composition, the maximum and minimum service temperatures, the flange pressure class, and the environmental conditions at the installation site. For services below 120 degrees C with non-aggressive media, G-10 glass epoxy typically offers the best combination of performance and cost. For hydrocarbon or aggressive chemical services up to 260 degrees C, reinforced PTFE with PEEK sleeves is the most widely specified solution. For steam or thermally cyclic services, expanded graphite with a polymer binder matrix is generally preferred. Our engineering team provides a free application review service: submit your P and ID data and fluid composition, and we will recommend the optimal material combination with supporting technical justification.
Q2: What is the minimum insulation resistance value that a Flange Insulating Gasket Set must achieve to protect a cathodic protection system effectively?
A: According to NACE SP0286 and the guidance documents published by major pipeline operators including those following ISO 15589 standards, the minimum acceptable insulation resistance for a flange isolation joint in a cathodically protected system is generally 100 megaohms when measured in dry conditions prior to installation, and no less than 1 megaohm after installation with the pipeline hydrostatically tested and at operating pressure. In practice, our Flange Insulating Gasket Sets manufactured using G-10 epoxy cores consistently achieve dry insulation resistance values above 5,000 megaohms, providing a substantial safety margin against degradation from soil moisture, biological fouling, and mechanical stress over the service life of the joint. We issue a test certificate for every kit confirming the measured value and the test method used.
Q3: Can polymer-based insulating gasket sets handle the bolt loads required for ANSI Class 900 and Class 1500 high-pressure flanges without cracking or excessive creep?
A: Yes, provided the correct polymer grade is specified. Standard PTFE alone is not suitable for high bolt-load applications because its relatively low compressive modulus leads to excessive creep under the stud loads required for Class 900 and Class 1500 flanges. However, glass-reinforced PTFE composites and G-10 glass epoxy grades have compressive strengths in the range of 300 to 480 megapascals, which is more than sufficient to accommodate the bolt loads in these pressure classes without cracking or dimensional collapse. For Class 1500 and above, our engineering team typically recommends a steel-backed washer arrangement that distributes the bolt load over a larger polymer surface area, further reducing localized stress concentrations. Our factory conducts full compression testing on all high-pressure gasket grades and the results are included in the product documentation package.
Q4: How should a polymer insulating gasket set be installed to ensure the electrical isolation is not compromised during bolt-up?
A: Correct installation practice is critical to achieving the insulation performance specified on the test certificate. The most common cause of isolation failure during commissioning is a conductive path created by a bolt or washer that contacts the flange body directly, bypassing the insulating sleeve and washer assembly. To prevent this, all bolts must be centered within their sleeves before torque is applied, and the inner and outer washers must be seated flush against both the flange face and the nut bearing surface before any load is applied. Torque should be applied in a minimum of three cross-pattern passes, with the final pass bringing each fastener to the target torque simultaneously. After bolt-up, insulation resistance should be measured across the joint using a 500 volt DC megaohmmeter before the flange is buried or insulated. Our installation instruction sheet, supplied with every kit, provides step-by-step guidance including specific torque values for each bolt size and pressure class combination.
Q5: What certifications and quality documentation does Ningbo Kaxite Sealing Materials Co., Ltd. provide with its Flange Insulating Gasket Sets?
A: Every order of Flange Insulating Gasket Sets from our factory is accompanied by a comprehensive documentation package. This includes a material certificate for the polymer gasket element with full material designation and physical property data, a dimensional inspection report confirming that the gasket and hardware dimensions conform to the specified flange standard, an electrical test certificate recording the measured insulation resistance and dielectric withstand voltage for the batch, and a pressure test certificate where hydrostatic shell testing has been performed. Our factory operates under an ISO 9001:2015 certified quality management system, and the manufacturing records for each order are retained for a minimum of ten years to support future audit requirements. For projects with specific third-party inspection requirements, such as those governed by a project quality plan referencing Lloyd's, Bureau Veritas, or SGS, we can arrange witnessed testing and certificate endorsement at the point of manufacture.
