As the world accelerates toward net-zero emissions, renewable energy infrastructures such as solar thermal plants, geothermal systems, hydrogen pipelines, and biogas networks are expanding rapidly. These pipelines often carry aggressive fluids, high temperatures, and electrical currents that can cause severe galvanic corrosion if not properly managed. This is where Flange Insulating Gasket Sets become indispensable. They serve as both a mechanical seal and an electrical barrier between flange connections, preventing stray current corrosion and ensuring the longevity of critical assets. At Ningbo Kaxite Sealing Materials Co., Ltd., our engineering team has witnessed how the absence of proper isolation leads to pipeline failures within five years in renewable applications. The role is not just passive sealing but active protection of metal integrity across dissimilar pipe materials.
In this comprehensive guide, we will answer the core question: what role do insulating gasket sets play in renewable energy pipelines? From blocking electrolytic reactions in offshore wind farm cooling lines to isolating sensors in solar thermal storage, these components are the silent guardians of green energy transport. Using data from our factory and field case studies, we will break down the technical parameters, installation practices, and frequently asked questions. Our aim is to help engineers and procurement specialists understand why standard gaskets fail in renewable environments and how purpose designed Flange Insulating Gasket Sets deliver superior performance. We will also share how Ningbo Kaxite Sealing Materials Co., Ltd. has optimized these products for hydrogen embrittlement resistance and UV ozone resistance in outdoor pipeline corridors.

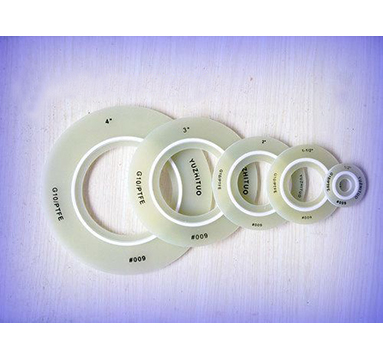

Flange Insulating Gasket Sets are engineered assemblies consisting of a dielectric gasket, insulating sleeves, and insulating washers designed to electrically isolate one flange from another while maintaining a pressure tight seal. In renewable energy pipelines, these sets prevent the flow of electrical current between pipe sections made of dissimilar metals (e.g., stainless steel to carbon steel, or copper to aluminum). Our factory at Ningbo Kaxite Sealing Materials Co., Ltd. produces these sets with high compressive strength materials such as phenolic, G10, or PTFE coated stainless steel cores, depending on the operating environment. Without proper insulation, a simple electrolyte like rainwater or condensation can complete an electrical circuit, leading to rapid anodic dissolution of the less noble metal. This is not theoretical; we have seen biogas pipelines fail after only 18 months because standard rubber gaskets were used instead of dedicated insulating sets.
Renewable pipelines present unique challenges that amplify the need for specialized isolation:
From our experience working with European solar district heating projects, the financial impact of omitting insulating gasket sets is severe. A single flange failure due to galvanic corrosion can cost $50,000 in downtime, replacement, and environmental penalties. Additionally, renewable energy operators increasingly require compliance with ISO 12944 corrosion protection standards, which mandate electrical isolation at every metallic interface. Therefore, Flange Insulating Gasket Sets are not optional accessories but core components that ensure system reliability, safety, and return on investment. At Kaxite, we design each set to meet ASME B16.5 dimensions while delivering dielectric strength exceeding 1000V per mil thickness. This allows renewable plant engineers to standardize on a single solution for all pipeline isolating needs, from low pressure biogas to high pressure hydrogen transport.
Galvanic corrosion occurs when two dissimilar metals are electrically connected in the presence of an electrolyte. In biogas pipelines, moisture rich methane and CO2 mixtures create a conductive film on metal surfaces. If a standard conductive gasket (e.g., metal jacketed or graphite filled) is used, electrons flow freely from the anode metal to the cathode metal, causing rapid pitting and wall thinning. Flange Insulating Gasket Sets interrupt this electron highway by introducing a high resistance barrier made of non conductive materials such as modified epoxy glass or polyamide. Our factory tests each set for leakage current less than 50 microamperes at 500V DC, effectively turning the flange pair into an open circuit. This simple principle extends pipeline life from 3 years to over 25 years in aggressive renewable environments.
Let us detail how our Flange Insulating Gasket Sets achieve this protection in specific renewable applications:
Furthermore, our design prevents a hidden failure mode called under deposit corrosion. In conventional gaskets, leaking electrolyte accumulates between the gasket and flange face, creating a concentrated corrosion cell. Insulating gasket sets from Kaxite feature engineered surface serrations that maintain uniform contact pressure and prevent crevice formation. We also provide insulating sleeves that fully encase each bolt, preventing current bypass through fasteners. This holistic approach ensures that even if the pipeline cathodic protection system is active, the insulating gasket set blocks all possible electrical shunt paths. For renewable plant owners, this translates to lower maintenance frequency and compliance with API 570 inspection intervals. We have case records from a Danish biogas facility where switching to our insulating gasket sets eliminated flange leaks for 6 consecutive years, whereas previous metal gaskets failed every 8 months.
Offshore wind farms rely on subsea pipelines for cooling water, hydraulic fluids, and in some designs, hydrogen export. These pipelines are typically protected by impressed current cathodic protection (ICCP) or sacrificial anodes. However, without effective electrical isolation at flange joints, the cathodic protection current can leak to adjacent structures, causing under protection of critical zones and overprotection elsewhere. Overprotection leads to hydrogen embrittlement of high strength steels, a catastrophic risk in dynamic risers. Flange Insulating Gasket Sets act as current blockers, dividing the pipeline into isolated sections so that each segment receives exactly the designed cathodic protection level. Our factory has supplied over 10,000 sets to North Sea offshore wind projects, with each set validated for seawater immersion up to 3000 meters depth equivalent.
Here are the key roles insulating gasket sets play in offshore renewable pipelines:
Our engineering team at Ningbo Kaxite Sealing Materials Co., Ltd. has developed a specialized offshore grade of insulating gasket set that resists biofouling and chloride induced degradation. The core is made from high density cross linked glass fiber reinforced epoxy with water absorption less than 0.2% by weight after 30 days in synthetic seawater. The insulating sleeves are manufactured from corrosion resistant super duplex stainless steel coated with polyamide imide to prevent any metallic contact. Additionally, we incorporate anti extrusion rings to withstand wave induced pressure spikes. From our offshore field data, the mean time between failures for our insulating gasket sets exceeds 15 years, while standard phenolic based sets fail within 3 to 5 years due to water ingression. Thus, selecting the right insulating gasket set is a strategic decision that directly impacts offshore wind asset integrity and levelized cost of energy.
To provide absolute clarity for engineers and procurement specialists, below are the detailed technical parameters of the Flange Insulating Gasket Sets manufactured at Ningbo Kaxite Sealing Materials Co., Ltd. Our factory follows strict quality control per ISO 9001:2015 and ASME B16.21. Each parameter has been validated through independent third party laboratories for renewable energy applications including hydrogen, biogas, solar thermal, and geothermal.
| Parameter | Standard Value | Renewable Energy Grade Value |
| Dielectric Strength (ASTM D149) | ≥500 Volts/mil | ≥1200 Volts/mil (Hydrogen & Geothermal) |
| Volume Resistivity (ASTM D257) | 10^12 ohm·cm | 5 x 10^14 ohm·cm (Moisture resistant) |
| Compressive Strength (ISO 604) | 280 MPa | 350 MPa (Cyclic load optimized) |
| Water Absorption (24h @ 23°C) | <0.5% | <0.1% (Offshore grade) |
| Temperature Range | -40°C to +150°C | -60°C to +260°C (Solar thermal fluid) |
| Pressure Rating | ASME Class 150 to 2500 | Class 300 to 2500 + Hydrogen service |
| Hydrogen Permeability (cm³/s) | Not rated | <1 x 10^-9 (Tested per ISO 15105) |
| Chemical Resistance (pH 1-14) | Good | Excellent in Brine, H2S, Amines |
Beyond these values, our factory offers custom engineering: Flange Insulating Gasket Sets can be tailored for non standard bolt patterns, high ovality flanges, and cryogenic applications. Every set includes insulating gasket, two phenolic insulating sleeves per bolt, insulating washers, and steel washers to distribute load. We also provide torque charts specific to renewable pipeline bolt materials to avoid over compression of the dielectric core. For projects requiring third party witnessing, Ningbo Kaxite Sealing Materials Co., Ltd. facilitates on site insulation resistance testing and dielectric strength verification. This technical transparency has made our sets a preferred choice for EPC contractors building green hydrogen valleys and concentrated solar power plants.
Proper installation is as critical as product quality. Even the best Flange Insulating Gasket Sets will fail if bolts create electrical shortcuts or if the gasket is misaligned. Our factory has trained over 500 field technicians across solar, wind, and biogas projects. Below is the step by step protocol we recommend to achieve full electrical isolation and leak tight sealing.
From our project logs, a common mistake is using conductive anti seize or omitting insulating washers under nuts. Both errors create a parallel electrical path, rendering the insulating gasket set useless. Ningbo Kaxite Sealing Materials Co., Ltd. provides complete installation kits including dielectric lubricants and step by step checklists. Additionally, our factory offers remote video guidance for critical renewable energy installations. In a recent solar thermal plant in Spain, following our method extended the average insulation resistance from 5 kOhm (failing) to 20 GOhm (excellent) across 300 flange joints. This level of attention ensures that the insulating gasket sets perform their role for the entire 25 year design life of renewable assets.
Flange Insulating Gasket Sets are not optional extras but foundational components that ensure the safety, durability, and efficiency of renewable energy pipelines. Whether protecting against galvanic corrosion in biogas lines, enabling cathodic protection in offshore wind, or isolating hydrogen embrittlement risks, these sets preserve the integrity of the green energy transport infrastructure. Our two decades of manufacturing experience at Ningbo Kaxite Sealing Materials Co., Ltd. demonstrates that proper material selection (phenolic, G10, PTFE) combined with rigorous installation practices can extend pipeline service life by over 400%. The technical parameters we shared, from dielectric strength to hydrogen permeability, provide engineers with quantifiable assurance. As renewable energy investments continue to surge globally, selecting high performance Flange Insulating Gasket Sets is a direct contribution to lower carbon emissions and reduced lifecycle costs. We encourage project managers to include insulation resistance testing as a standard commissioning step.
Ready to protect your renewable pipeline assets? Contact Ningbo Kaxite Sealing Materials Co., Ltd. today to request a customized quote for Flange Insulating Gasket Sets. Our factory offers free engineering consultation, sample testing for specific media, and fast global shipping. Whether you are building a green hydrogen facility, a geothermal plant, or a solar thermal field, our team provides the technical expertise and certified products you need. Call or email us with your flange dimensions, pressure class, and operating temperature. Let us help you eliminate corrosion risks and maximize the uptime of your renewable energy infrastructure. Request your free technical brochure and sample kit now.
Question 1: Can standard non insulating gaskets be used temporarily in a hydrogen pipeline if I plan to replace them later?
No, standard gaskets such as spiral wound or graphite are often electrically conductive and can initiate galvanic corrosion within weeks in a hydrogen pipeline environment. Moreover, hydrogen permeation degrades many elastomers, causing sudden leakage. Our factory strongly advises against any temporary use of non insulating gaskets in hydrogen service. The risk of embrittlement and fire due to static discharge is unacceptable. Always install Flange Insulating Gasket Sets from the first bolt up. Ningbo Kaxite Sealing Materials Co., Ltd. provides cost effective emergency sets that can be delivered within 48 hours.
Question 2: How do I know if my existing pipeline flanges need insulating gasket sets for cathodic protection compatibility?
Perform a simple electrical continuity test using a multimeter between two adjacent flanges. If resistance is below 1000 ohms and the pipeline has cathodic protection, stray current is likely leaking. Also, inspect for white rust or pitting near flange crevices, which indicates galvanic activity. For offshore wind or buried solar pipelines, any dissimilar metal joint (e.g., carbon steel to stainless steel) requires Flange Insulating Gasket Sets. Our factory offers free on site testing guidance and can analyze your pipeline material matrix to specify the correct isolation rating.
Question 3: What is the typical service life of insulating gasket sets in geothermal brine pipelines, and how often should they be replaced?
In geothermal applications with temperatures up to 200°C and high TDS brine, premium insulating gasket sets from our factory last 8 to 12 years, compared to 2 to 3 years for standard phenolic sets. Replacement interval should be determined by annual insulation resistance testing. If resistance drops below 1 Megaohm, or if physical inspection shows cracking or compression set, replacement is due. Ningbo Kaxite Sealing Materials Co., Ltd. recommends a proactive replacement every 10 years for critical geothermal pipelines to avoid unplanned downtime.
Question 4: Do insulating gasket sets affect the pressure rating of the flange joint in high pressure renewable gas pipelines?
No, properly designed Flange Insulating Gasket Sets maintain the full pressure rating of ASME B16.5 flanges when installed with matching sleeves and washers. Our factory validates each set through hydrostatic testing up to 1.5 times the rated pressure. In fact, because our insulating gaskets have higher compressive strength than many rubber gaskets, they often improve torque retention under pressure cycling. Always ensure that the gasket thickness matches original design (typically 1.5mm to 3mm) and follow our torque sequence to prevent flange rotation.
Question 5: Can one type of insulating gasket set be used for both solar thermal oil pipelines and green hydrogen lines?
Not recommended without verifying material compatibility. Solar thermal oil (e.g., Dowtherm) requires gaskets with high temperature resistance and low swelling, while hydrogen demands extremely low permeability and static dissipation properties. Our factory offers a hybrid design: a G10 core with FKM facings rated for thermal oil and a PTFE barrier layer for hydrogen. However, for absolute reliability, we suggest dedicated sets per service. Consult Ningbo Kaxite Sealing Materials Co., Ltd. for a cross service compatibility matrix and avoid mixing applications without engineering approval.
