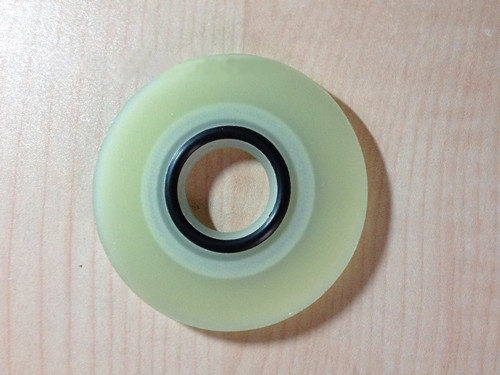

KXT-120 Flange insulation gasket kits use G10 or G11 epoxy glass as retainer, and use two seal elements overlapping and offsetting into two unique seal grooves, thus, the seal elements can be sealed without outside pressure. This can eliminate potential leak in the laminate material, and increases the choice of seal elements.
This kind of sealing gasket not only can use Viton, EPDM, neoprene as seal elements, but also can use Teflon with a spring energized, which can increase the resilience of Teflon and increase the whole gasket’s sealing performance.
Because of Teflon’s excellent corrosion resistance and temperature resistance, spring-energized Teflon is the most reliable sealing element, and this kind of sealing gasket is recommended for all environments.
KXT-120 flange insulation gasket kit usually includes KXT-120 insulation gasket, G10 insulating sleeves, G10 insulating washers, and zinc plated steel washers.
