Flange isolation plays a decisive role in protecting pipeline systems from corrosion, electrical interference, and structural degradation. In industrial sectors such as oil and gas, petrochemical processing, water treatment, and power generation, pipelines operate under high pressure, aggressive media exposure, and complex environmental conditions. Without proper electrical isolation at flange joints, stray currents and galvanic corrosion can silently compromise system integrity, leading to leakage, unplanned downtime, and significant financial loss.
The role of flange isolation in pipeline safety and integrity is to create a reliable electrical barrier between connected metal components while maintaining mechanical sealing performance under demanding service conditions. By installing properly engineered Flange Insulating Gasket Sets, operators can prevent electrochemical corrosion, control cathodic protection systems effectively, and extend pipeline lifespan. At Ningbo Kaxite Sealing Materials Co., Ltd, we design and manufacture precision-engineered isolation solutions that combine dielectric strength, compressive stability, and long-term sealing reliability to meet international standards and real-world operating demands.
1. What Is Flange Isolation and Why Is It Essential for Pipeline Systems?
2. How Do Flange Insulating Gasket Sets Protect Against Corrosion and Electrical Damage?
3. What Technical Parameters Define High-Performance Flange Isolation Solutions?
4. Why Does Proper Installation and Material Selection Determine Long-Term Integrity?
5. Conclusion
6. FAQ
Flange isolation refers to the practice of electrically separating two metallic flange faces in a pipeline assembly to prevent the flow of electrical current between them. In complex pipeline networks, metallic continuity can allow stray currents, galvanic reactions, and induced voltages to travel across connected systems. Over time, these electrical phenomena accelerate corrosion and threaten structural integrity.
In industries governed by strict safety standards, flange isolation is not optional. It is a preventive engineering control that supports:
Ningbo Kaxite Sealing Materials Co., Ltd has developed advanced Flange Insulating Gasket Sets specifically engineered to maintain dielectric isolation while ensuring tight sealing under pressure. Our factory focuses on combining mechanical strength with electrical insulation to deliver balanced performance.
In large pipeline infrastructure projects, the consequences of ignoring flange isolation include:
Flange isolation is especially critical in:
At Ningbo Kaxite Sealing Materials Co., Ltd, we emphasize that isolation must not compromise sealing integrity. Our engineering team integrates sealing compression behavior with dielectric requirements, ensuring both leak prevention and corrosion protection. This dual-function design philosophy defines our manufacturing standards and reinforces our commitment to pipeline safety.

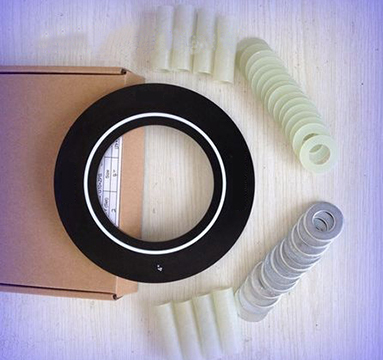

Flange Insulating Gasket Sets function as an integrated system consisting of an insulating gasket, insulating sleeves, insulating washers, and steel backing washers. Together, these components create a continuous dielectric barrier across the flange assembly.
The protection mechanism operates on multiple levels:
This configuration blocks current flow across flange joints, preventing galvanic circuits from forming.
In cathodically protected systems, isolation ensures that protective current flows only where intended. Without isolation, protective current may dissipate through unintended paths, reducing efficiency and increasing energy costs.
Ningbo Kaxite Sealing Materials Co., Ltd manufactures Flange Insulating Gasket Sets with high dielectric strength materials such as G10, G11, phenolic resin bonded laminates, and high-performance epoxy glass composites. Our factory ensures consistent insulation resistance even under elevated temperature and pressure conditions.
Key performance advantages include:
Electrical damage prevention extends beyond corrosion control. In hazardous environments, flange isolation also:
Our quality control procedures include dielectric strength testing, compressive load validation, and dimensional inspection to ensure that every product leaving our factory meets strict engineering tolerances. Ningbo Kaxite Sealing Materials Co., Ltd prioritizes both safety and long-term operational performance in every production batch.
When selecting isolation solutions, engineers must evaluate technical parameters carefully. The effectiveness of flange isolation depends on measurable material properties and structural performance metrics.
| Parameter | Typical Value Range | Function |
| Insulation Resistance | Above 1000 Megaohms | Prevents electrical continuity |
| Dielectric Strength | Above 10 kV per mm | Withstands voltage stress |
| Compressive Strength | Above 300 MPa | Maintains sealing under bolt load |
| Operating Temperature | Minus 50 to 180 degrees Celsius | Ensures stability in extreme climates |
| Pressure Rating | Up to Class 2500 | Suitable for high pressure pipelines |
Ningbo Kaxite Sealing Materials Co., Ltd designs products according to ASME, API, and international sealing standards. Our factory supports customized dimensions to match ANSI, DIN, and EN flange specifications.
Material options include:
Flange Insulating Gasket Sets are available in:
Each configuration is engineered to balance load distribution and insulation efficiency. Our production facility integrates CNC machining, precision punching, and quality testing equipment to ensure dimensional accuracy. Ningbo Kaxite Sealing Materials Co., Ltd maintains strict inspection protocols, ensuring that each batch of Flange Insulating Gasket Sets meets mechanical and dielectric specifications before shipment.
Even the highest quality isolation components can fail if installation procedures are incorrect. Long-term pipeline integrity depends on both product selection and installation accuracy.
Critical installation considerations include:
Improper installation can lead to:
Ningbo Kaxite Sealing Materials Co., Ltd provides technical support documentation to ensure proper field application. Our factory works closely with EPC contractors and maintenance teams to recommend suitable materials based on operating pressure, temperature, and media composition.
Material selection should consider:
Flange Insulating Gasket Sets selected without evaluating these factors may underperform. At Kaxite Sealing, we analyze service conditions and provide tailored solutions to enhance operational reliability. Our engineering-driven manufacturing approach ensures that isolation components perform consistently throughout the pipeline lifecycle.
Flange isolation plays a foundational role in pipeline safety and integrity by preventing corrosion, controlling electrical interference, and maintaining sealing performance under demanding industrial conditions. Properly engineered Flange Insulating Gasket Sets support cathodic protection systems, reduce maintenance costs, and enhance long-term structural reliability.
Ningbo Kaxite Sealing Materials Co., Ltd remains committed to delivering high-performance sealing and isolation technologies. Our factory integrates advanced material science, precision manufacturing, and strict quality assurance to provide dependable solutions for global pipeline projects. If you are evaluating isolation systems for your next project, contact us today to discuss specifications, customization options, and technical support tailored to your application.
Flange isolation prevents electrical continuity between connected pipeline sections, reducing galvanic corrosion, supporting cathodic protection efficiency, and enhancing structural safety in high-risk industrial environments.
They confine protective current to intended pipeline sections, preventing current leakage across flanges and ensuring accurate monitoring of corrosion control systems.
G10 and G11 epoxy glass laminates are widely used due to their high compressive strength, dielectric resistance, and thermal stability in demanding pressure classes.
Yes, high-performance insulating materials maintain mechanical and electrical stability across a wide temperature range, depending on material grade selection and engineering design.
Insulation resistance should be tested during commissioning and periodically during maintenance cycles to ensure dielectric integrity remains within specified limits.
