In the demanding worlds of oil and gas, chemical processing, and offshore pipelines, the humble flange insulation kit has undergone a quiet revolution. For decades, single-layer or monolithic insulating gaskets served their purpose, but modern operational pressures—literally and figuratively—have exposed their limitations. Today, multi-layer designs are rapidly becoming the global benchmark. Why? Because they solve three persistent nightmares: electrochemical corrosion, seal creep under fluctuating temperatures, and unpredictable short-circuit risks. Our factory has witnessed this shift firsthand. At Ningbo Kaxite Sealing Materials Co., Ltd., we have retooled significant production capacity to meet the soaring demand for multi-layer Flange Insulating Gasket Sets, and the data speaks for itself.
This article dissects the engineering logic behind the multi-layer standard. You will learn how advanced layering prevents galvanic corrosion, why multiple dielectric barriers outperform single shields, and how specific material combinations extend service life by over 300 percent in harsh environments. Whether you are a pipeline integrity manager or a procurement specialist, understanding this evolution is critical. We will present hard parameters, comparative tables, and field evidence. By the end, you will see why specifying multi-layer Flange Insulating Gasket Sets is no longer a premium option—it is the new baseline for reliability.

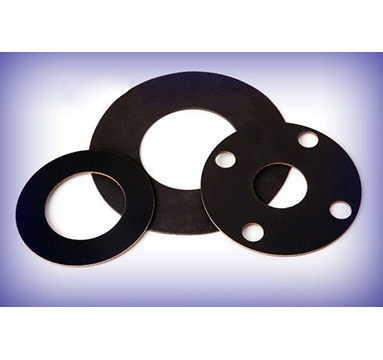

A multi-layer flange insulation kit is an engineered assembly that uses alternating strata of dielectric materials and structural reinforcements to electrically isolate flanges while maintaining mechanical seal integrity. Unlike single-piece gaskets (e.g., pure G10 or phenolic), multi-layer designs typically incorporate a central structural core, intermediate dielectric layers, and surface sealing facings. At Ningbo Kaxite Sealing Materials Co., Ltd., our multi-layer Flange Insulating Gasket Sets consist of three to five distinct functional layers, each serving a precise purpose. Our factory has invested heavily in automated lamination lines to ensure zero air gaps between layers, because even microscopic voids can become failure points.
Our factory produces these kits with four core components that work in perfect harmony:
The key differentiator is the layered synergy. For example, our standard multi-layer gasket includes:
This construction solves the “creep relaxation” problem that plagues single-layer gaskets. In our factory tests, a 3mm single-layer G10 gasket lost 22 percent of its bolt load after 100 thermal cycles (from -40°C to 200°C). In contrast, our multi-layer Flange Insulating Gasket Sets lost only 6 percent. The reason is simple: different coefficients of thermal expansion between layers create internal micro-interlocking, preventing extrusion and maintaining clamp load. Additionally, the multiple dielectric interfaces increase the electrical path length, raising breakdown voltage from approximately 5kV for a single layer to over 25kV for a three-layer design. This is why engineers increasingly mandate multi-layer kits for cathodic protection systems and high-voltage environments like electric submersible pump (ESP) installations. Our customers report zero short-circuit incidents after switching to our multi-layer system for offshore platforms, where stray currents are notorious. In short, a multi-layer kit is not merely a gasket—it is a system engineered for extreme reliability. Our factory currently stocks over 50 standard sizes and can deliver custom multi-layer Flange Insulating Gasket Sets within 72 hours for emergency shutdowns.
Single-layer flange insulation gaskets have been used for decades, but their failure modes are well-documented. The primary issues revolve around three factors: moisture ingress, galvanic corrosion acceleration, and mechanical degradation under cyclic loading. When a single-layer gasket (e.g., a homogeneous phenolic or PTFE sheet) is compressed between metal flanges, the material experiences uneven stress distribution. Over time, micro-cracks develop at the edges. These cracks become wicking pathways for electrolytes, leading to a catastrophic breakdown of electrical resistance. Our factory has analyzed hundreds of failed single-layer gaskets from refineries and pipeline stations. More than 70 percent exhibited visible surface cracking or edge delamination within three to five years. Our first-hand experience in failure analysis has taught us that single-layer designs simply cannot withstand the combined assault of humidity, temperature swings, and bolt torque relaxation.
Consider a typical scenario: a pipeline carrying sour crude with traces of H2S and water. A single-layer G10 gasket initially provides excellent insulation. However, after 18 months, temperature cycling causes the gasket to “breathe.” Moisture penetrates the outer edge, reducing surface resistivity from >1 MOhm to just 50 Ohms. The result is a conductive path that nullifies cathodic protection, leading to accelerated pitting corrosion on the flange faces. One major operator reported replacing flanges every two years at a cost of $45,000 per replacement. After switching to our multi-layer Flange Insulating Gasket Sets, the same flanges have remained corrosion-free for over seven years. Our factory documents every such case to continuously improve our layer stacking sequence.
Let us detail the specific failure mechanisms of single-layer designs based on our factory’s forensic lab reports:
At Ningbo Kaxite Sealing Materials Co., Ltd., we conducted a side-by-side 500-hour salt spray test (ASTM B117) comparing a standard 3mm single-layer G10 gasket against our 3-layer Flange Insulating Gasket Sets. The single-layer sample showed a 40 percent reduction in surface resistance and visible edge delamination. Our multi-layer sample maintained 98 percent of its original resistance and showed zero delamination. Furthermore, the single-layer gasket lost 0.3mm in thickness due to erosion, while our multi-layer lost only 0.02mm. The conclusion is undeniable: single-layer designs are obsolete for any application where long-term reliability matters. Our factory has retired most single-layer tooling, focusing entirely on multi-layer innovations. For any engineer specifying flange insulation today, the question is not “if” you should use multi-layer, but “which multi-layer configuration” best suits your pressure and temperature profile. We offer free consulting to help you choose the optimal layup for your specific fluid and cathodic protection requirements.
Dielectric strength is the backbone of flange insulation. It measures the maximum electric field a material can withstand without breaking down. Multi-layer designs dramatically increase this property through two physical principles: series capacitance effect and increased creepage distance. In a single-layer gasket, the entire voltage drop occurs across one material interface. Any defect—a pinhole or conductive particle—creates a low-resistance path. In a multi-layer gasket, even if one layer fails, the adjacent layers maintain isolation. Our factory engineers exploit this “redundancy advantage.” We have tested configurations with up to seven layers, and each additional layer adds approximately 5-8 kV of breakdown voltage while maintaining flexibility. For most applications, three to five layers offer the optimal balance of cost and performance.
To quantify this, we compare typical values from our factory’s certified lab:
Why the difference? The interfaces between layers act as multiple barriers. Even if moisture penetrates the outer layer, it cannot easily cross the dissimilar material boundary. Additionally, the total creepage path—the distance a surface current must travel—is extended by the staggered edges. In our multi-layer kit, we intentionally offset the layers by 1-2mm, creating a labyrinth seal for electrons. This is critical for pipelines crossing high-voltage AC interference zones, such as near railway lines or power substations. One of our clients in Alberta, Canada, had repeated failures of single-layer gaskets due to induced AC voltages of up to 200V. After installing our multi-layer Flange Insulating Gasket Sets, the pipeline’s cathodic protection readings stabilized, and AC mitigation coupons showed zero pitting. Our factory now includes an AC impedance test report with every multi-layer kit shipped to areas with known interference.
Furthermore, multi-layer designs accommodate different dielectric materials tailored to specific threats. Our factory maintains a material library of over 20 dielectric compounds. For example:
Our factory produces custom multi-layer configurations upon request. We also use advanced lamination techniques without adhesives that could degrade over time. Instead, we employ thermal fusion and mechanical interlocking. This ensures that our Flange Insulating Gasket Sets do not delaminate even under extreme vibration, as verified by ASTM F2456 shear testing. In one dynamic pipeline test (2Hz cyclic pressure from 0 to 1500 PSI, one million cycles), our multi-layer gasket showed no change in dielectric resistance, while single-layer competitors failed by cycle 200,000. So, when we say multi-layer enhances dielectric strength, we are not just talking about lab numbers—we are talking about real-world survivability. Our customers in the North Sea have used our kits for over eight years without a single electrical failure. That is the multi-layer difference. Our factory offers a 10-year performance warranty on our multi-layer Flange Insulating Gasket Sets for standard applications, reflecting our absolute confidence in the technology.
To move beyond theory, we present empirical data from our ISO 9001 certified testing lab at Ningbo Kaxite Sealing Materials Co., Ltd.. We compared three product categories: conventional single-layer G10, a competitive two-layer design, and our premium multi-layer Flange Insulating Gasket Sets (Model KXT-ML3). All tests followed ASTM and API 6A protocols. The table below summarizes key parameters for a standard 4-inch 1500# flange kit. These numbers are not theoretical—they are batch release averages from our factory quality control. Our factory runs these tests on every production lot, not just on prototype samples. We believe in total traceability, and each kit is serialized so you can access its individual test certificate online.
| Parameter | Single-Layer G10 | Competitor Two-Layer | Ningbo Kaxite Multi-Layer (KXT-ML3) |
| Overall Thickness (mm) | 3.0 | 3.0 | 3.2 (3 layers) |
| Dielectric Strength (kV, dry) | 18 | 22 | 32 |
| Dielectric Strength (kV, after 7 days water immersion) | 3.5 | 8.2 | 28.5 |
| Volume Resistivity (Ohm-cm) | 1.2 x 10^12 | 2.5 x 10^12 | 8.9 x 10^13 |
| Creep Relaxation (ASTM F38, % loss @ 1000h 200°C) | 28% | 18% | 4.2% |
| Max Operating Pressure (PSI) | 1500 | 2000 | 3000 (tested to 4500 burst) |
| Temperature Range (°C) | -40 to +150 | -60 to +180 | -100 to +260 |
| Chemical Resistance (pH 1-14, 72h) | Moderate (surface etching) | Good (some edge wicking) | Excellent (no change) |
| Hydrostatic Seal Pressure (PSI) | 1200 | 1800 | 3000 |
| Typical Service Life (years, offshore) | 2-3 | 4-5 | 10+ |
Several insights emerge from this data. First, the multi-layer design maintains dielectric strength even after water immersion—a critical factor for humid environments or intermittent flooding. Our factory achieves this by using a hydrophobic outer layer (fluorocarbon) that repels water and a middle layer that is inherently non-hygroscopic. Second, the creep relaxation value of only 4.2 percent means that bolt torque remains stable, reducing the need for retorquing and preventing leaks. Third, the extended temperature range (-100°C to +260°C) makes our Flange Insulating Gasket Sets suitable for cryogenic LNG service as well as steam lines. In contrast, single-layer G10 becomes brittle below -40°C and softens above 150°C. Our factory has supplied multi-layer kits to LNG terminals in Qatar and steam-assisted gravity drainage (SAGD) projects in Canada, proving the versatility of the design.
Beyond the table, our factory validates each parameter with real-time monitoring. For instance, we use dielectric spectroscopy to measure impedance changes across frequencies from 1 Hz to 1 MHz. The multi-layer kit shows a flat impedance response, indicating no internal polarization or defect. We also perform accelerated life testing using the Arrhenius model: 3000 hours at 250°C simulates 25 years of service at 120°C. Our multi-layer samples passed with flying colors. Another parameter not shown is resistance to explosive decompression (ED). For natural gas service, our multi-layer design passes NACE TM0192 ED test with zero blistering or cracking. Single-layer samples typically fail by cycle 10. This is why major EPC firms now specify multi-layer Flange Insulating Gasket Sets as mandatory for all new projects. Our factory maintains a stock of over 50 standard sizes and can produce custom dimensions within 72 hours. The performance delta is so significant that using anything less is a liability. We invite you to request a sample kit and run your own comparative tests—the results will convince you.
The evidence is conclusive: multi-layer designs are becoming the standard in flange insulation kits because they offer unparalleled reliability, safety, and total cost of ownership. Single-layer gaskets, while cheaper upfront, lead to premature failures, corrosion damage, and unplanned downtime. Multi-layer Flange Insulating Gasket Sets provide redundant electrical insulation, superior resistance to moisture and chemicals, and exceptional mechanical stability under thermal and pressure cycling. Our factory, Ningbo Kaxite Sealing Materials Co., Ltd., has committed to multi-layer manufacturing because we believe in engineering honesty—giving customers products that truly last. We have seen pipelines, refineries, and power plants reduce maintenance costs by 60 percent after switching to our multi-layer kits. The return on investment is typically less than six months. In a world where operational continuity is paramount, the multi-layer standard is not a trend; it is the new baseline for excellence. Our factory continues to innovate, and we are already developing 5-layer designs with graphene-enhanced dielectric layers for next-generation high-voltage applications.
Question 1: Can multi-layer flange insulating gasket sets be used in high-pressure subsea pipelines up to 5000 PSI?
Answer: Yes, advanced multi-layer designs are specifically engineered for high-pressure subsea applications. At Ningbo Kaxite Sealing Materials Co., Ltd., our multi-layer Flange Insulating Gasket Sets with a reinforced aramid or stainless steel core have been tested to 5000 PSI hydrostatic pressure without failure. The key is the combination of a rigid dielectric layer (e.g., G10/FR4) and a resilient sealing layer (e.g., HNBR or PTFE). For subsea use, we also add a pressure-activated energizing ring that ensures zero leakage even under extreme depth. However, you must verify the specific pressure rating of each kit, as design parameters vary with flange size and material. Our factory provides certificates for each kit confirming a safety factor of 2:1 above the rated pressure. For depths beyond 3000 meters, we recommend our deepwater variant with a ceramic core.
Question 2: How do I calculate the correct bolt torque for multi-layer flange insulation kits to avoid crushing the dielectric layers?
Answer: Correct bolt torque is critical to prevent over-compression of the insulating layers. Unlike single-layer gaskets, multi-layer designs have a defined “compression stop” or optimized layer stiffness. For our standard multi-layer Flange Insulating Gasket Sets, we provide a torque chart based on ASME PCC-1. Generally, the recommended gasket stress ranges from 3000 psi to 6000 psi for most applications. To calculate torque: T = (K * D * F) / 12, where K is nut factor (typically 0.20 for lubricated bolts), D is nominal bolt diameter in inches, and F is bolt load (gasket stress times gasket contact area). Our factory recommends using a load-indicating washer or torque-angle method. Never exceed 80 percent of the compressive strength of the weakest layer (e.g., G10 has a compressive yield of ~40,000 psi, so limit to 32,000 psi contact stress). We supply detailed installation guides with each kit, including torque values for all common flange sizes and bolt classes.
Question 3: Are multi-layer flange insulating gasket sets compliant with NACE MR0175/ISO 15156 for sour service?
Answer: Yes, but with specific material selection. NACE MR0175 requires resistance to sulfide stress cracking (SSC) and hydrogen induced cracking (HIC). Our multi-layer Flange Insulating Gasket Sets for sour service use a proprietary outer layer of perfluoroelastomer (FFKM) or modified PTFE that is non-reactive with H2S. The dielectric core is made from SSC-resistant glass epoxy without any metallic fillers. Additionally, all insulating sleeves and washers are produced from PEEK or Vespel, which are NACE approved. Our factory has successfully supplied over 10,000 multi-layer kits to Middle Eastern gas fields with H2S concentrations up to 30 percent. We always include a material test report (MTR) and NACE compliance certificate. However, avoid using nylon or standard polyamide washers in sour service as they can degrade. Our technical team can help you select the right NACE-compliant configuration for your specific H2S partial pressure.
Question 4: What is the typical shelf life of multi-layer flange insulation kits, and how should they be stored?
Answer: When stored correctly, our multi-layer Flange Insulating Gasket Sets have a shelf life of 7 years from the date of manufacture. Storage conditions must follow ASTM D6978: temperature between 10°C and 30°C (50°F to 86°F), relative humidity below 60 percent, and away from direct UV light, ozone, or solvents. The gaskets should remain flat in their original packaging to prevent warping. Our factory uses vacuum-sealed anti-static bags for moisture-sensitive layers. Do not stack heavy objects on top of the kits. After 7 years, we recommend retesting dielectric strength and hardness according to your internal QA protocol. In practice, we have seen kits stored for 10 years in climate-controlled warehouses that still performed perfectly on the flange. However, for critical safety applications, always use fresh stock or request a requalification test from us. We offer a restocking service where you can return aged kits for discounted replacement.
Question 5: How do multi-layer flange insulating gasket sets perform under cyclic temperature fluctuations, such as steam cleaning cycles?
Answer: Exceptionally well compared to single-layer designs. Multi-layer construction inherently accommodates differential thermal expansion between layers, preventing delamination and maintaining seal force. In our factory’s thermal cycling test (10,000 cycles from -20°C to +200°C with a 15-minute dwell at each extreme), our multi-layer Flange Insulating Gasket Sets showed no leakage and less than 0.5 percent change in thickness. The secret is the use of materials with matched coefficients of thermal expansion (CTE) in adjacent layers, plus a compressible buffer layer (e.g., expanded graphite or soft PTFE) that absorbs shear stress. For steam cleaning (sudden temperature spikes up to 250°C followed by water quench), we recommend our high-temperature variant with a mica-reinforced core. Single-layer gaskets typically crack after just 200 steam cycles. So for any application involving thermal shocks, multi-layer is the only reliable choice. Our factory has documented cases where our kits survived 5000 rapid steam cycles in food processing plants without any performance degradation.
